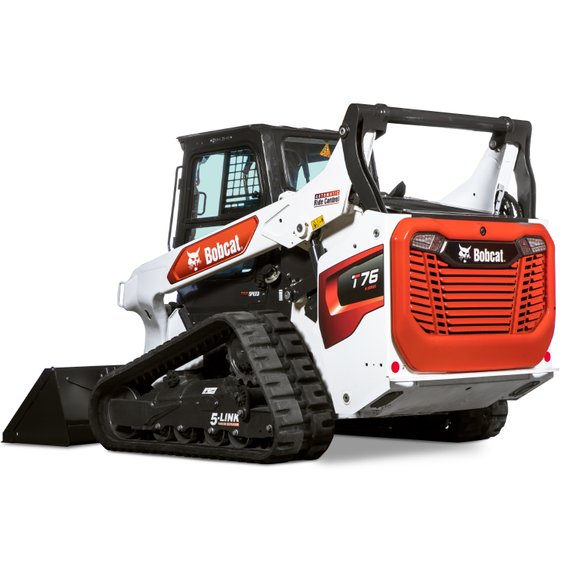

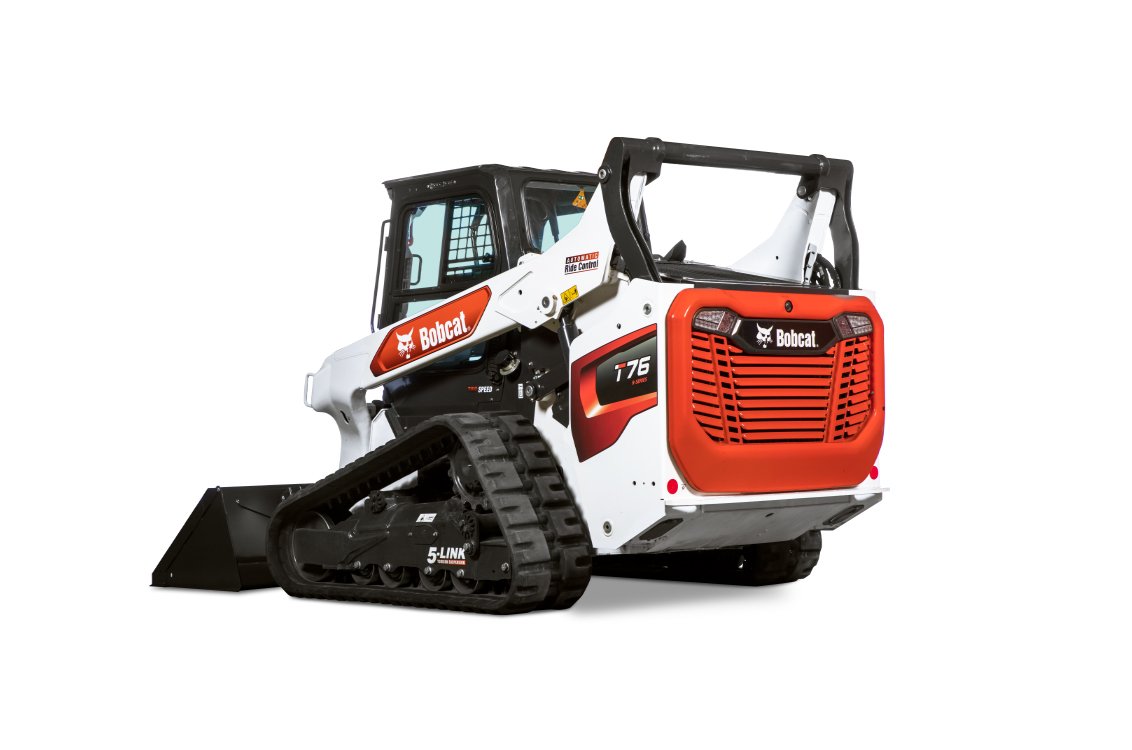

Bobcat T76 Compact Track Loader
The Bobcat T76 compact track loader is part of the R-Series loader lineup. Recently redesigned to meet the changing demands of today’s most heavy-duty jobs, this 74-hp loader comes with top notch features to maximize productivity. Complete with an inline engine and direct-drive system, the machine also has cast-steel lift arms to increase lift height and capacity. Get a more comfortable ride with the advanced 5-link torsion suspension undercarriage, automatic heat and air conditioning, ergonomic controls, and a larger cab space. Trust the T76 to deliver more usable horsepower and better performance overall to knock out bit projects faster.
Specifications
Operating Weight | 8615.0 lbs |
Emissions Tier | Tier 4 Final |
Horsepower | 74.0 hp |
Fuel Tank Capacity | 31.7 gal |
Hydraulic Pump Flow (Standard) | 23.3 gal/min |
Relief Pressure (Std Flow) | 3450.0 psi |
Operator Protection | ROPS/FOPS |
Number of Speeds | 1 |
Ground Pressure | 6.2 psi |
Length With Bucket (Dig/Carry) | 147.1 in |
Overall Length w/Bucket | 147.1 in |
Height to Top of Cab | 81.8 in |
Overall Width Without Bucket | 72.9 in |
Height to Hinge Pin | 128.3 in |
Length Less Bucket | 113.9 in |
Overall Height | 128.3 in |
Overall Length | 113.9 in |
Overall Width | 74.0 in |
Travel Speed | 6.8 mph |
Tipping Load (SAE) | 8285.0 lbs |
Operating Capacity (35% of Tip Load) | 2900.0 lbs |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
It's the FINAL MONTH of our biggest sale of the year. We have premium machines available from some of the world's top brands such as DEVELON, Bobcat, CLARK, Ammann, Doosan and more. We're offering machines with heavy discounts; some machines are even listed at cost to maximize savings. Upgrade your fleet! Contact us today to find out how much can save.
Specifications and images may vary in accuracy.
