New Equipment

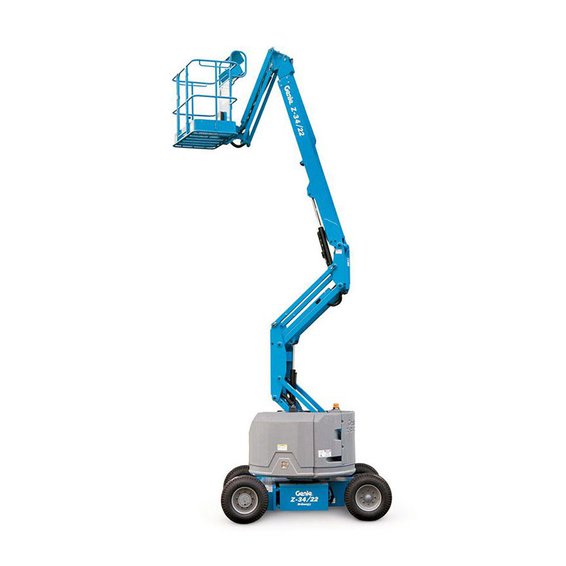

Genie Z34 Articulated Boom Lift
The Genie Z34/22 DC electric articulating boom lift excels in indoor or outdoor applications. Freely operate emission-free in the most sensitive work environments. With a horizontal reach of 267 inches, this machine can support you to get high elevation jobs done with greater safety.
Specifications
| Drive | 2WD |
| Travel Speed (Lowered) | 4.0 mph |
| Travel Speed (Raised) | 0.68 mph |
| Maximum Platform Capacity | 500.0 lbs |
| Maximum Platform Height | 414.0 in |
| Horizontal Reach | 267.0 in |
| Platform Rotation | 180.0 degrees |
| Platform Size | 30 X 56 in |
| Power Mode | Electric |
| Voltage | 48.0 V |
| Hydraulic Tank Capacity | 4.0 gal |
| Ground Clearance | 6.0 in |
| Inside Turning Radius | 69.0 in |
| Operating Weight | 11000.0 lbs |
| Outside Turning Radius | 157.0 in |
| Overall Width | 68.0 in |
| Stowed Height | 79.0 in |
| Stowed Length | 222.0 in |
| Wheelbase | 74.0 in |
| Tire Size | 9-14.5 Pneumatic |
| Gradeability | 30.0 percent |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
