New Equipment

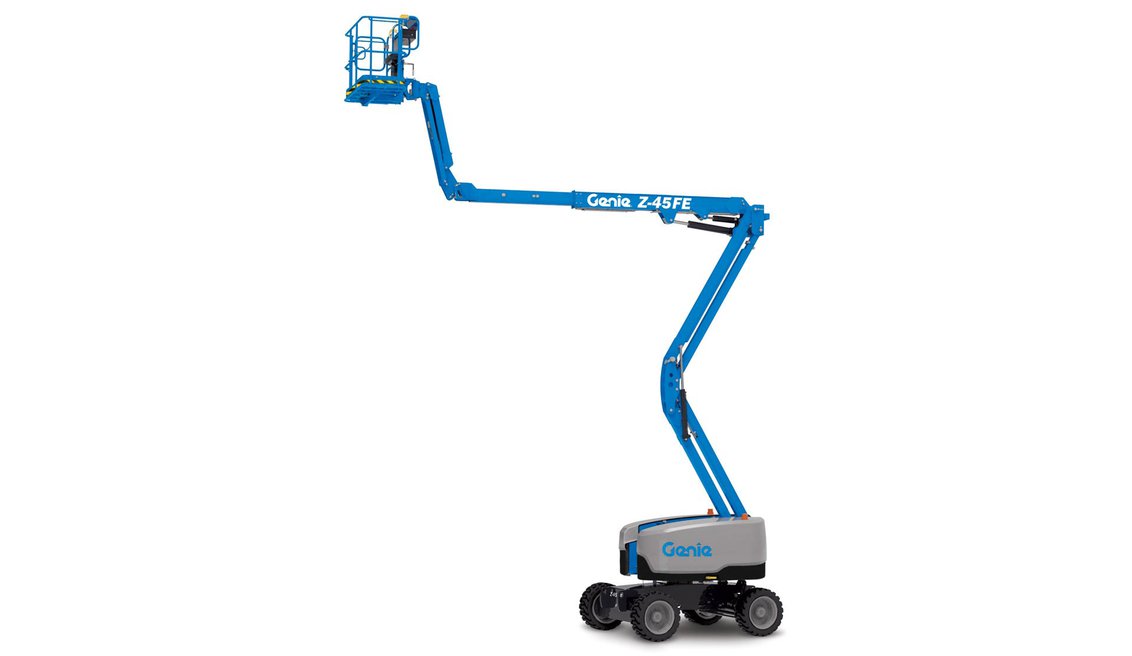

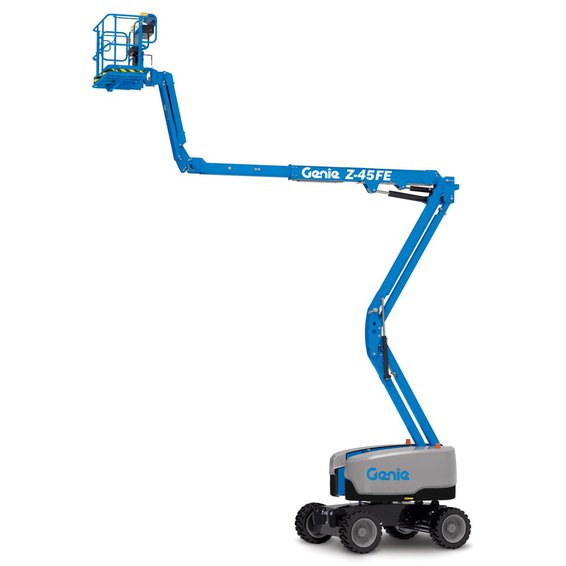

Genie Z45 Articulated Boom Lift
For jobs that require low noise and clean performance, the Genie Z45 articulated boom lift can deliver superior results. It has a horizontal reach of 300 inches and maximum platform capacity of 500 lbs to support your indoor or outdoor applications. Increase productivity on your jobsite and maximize workplace safety to perform work at high elevations.
Specifications
| Drive | 2WD |
| Travel Speed (Lowered) | 3.0 mph |
| Travel Speed (Raised) | 0.68 mph |
| Maximum Platform Capacity | 500.0 lbs |
| Maximum Platform Height | 546.0 in |
| Horizontal Reach | 300.0 in |
| Platform Rotation | 180.0 degrees |
| Platform Size | 30 X 72 in |
| Power Mode | Electric |
| Voltage | 48.0 V |
| Hydraulic Tank Capacity | 8.0 gal |
| Ground Clearance | 9.5 in |
| Inside Turning Radius | 72.0 in |
| Operating Weight | 15350.0 lbs |
| Outside Turning Radius | 168.0 in |
| Overall Width | 70.3 in |
| Stowed Height | 79.0 in |
| Stowed Length | 219.0 in |
| Wheelbase | 80.0 in |
| Tire Size | 9-14.5 Foam-fill |
| Gradeability | 30.0 percent |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
