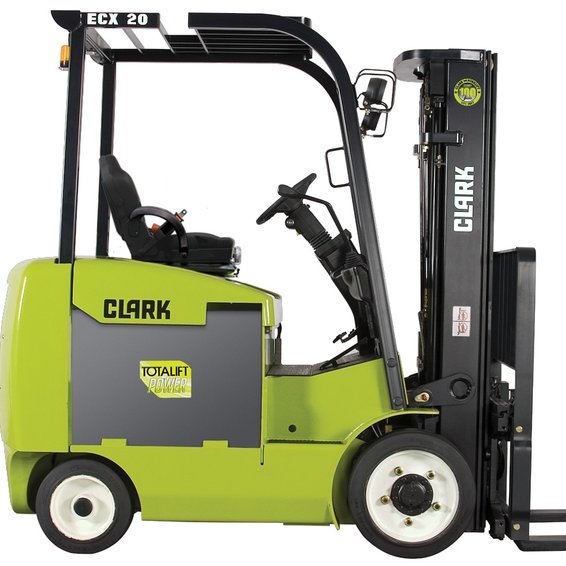

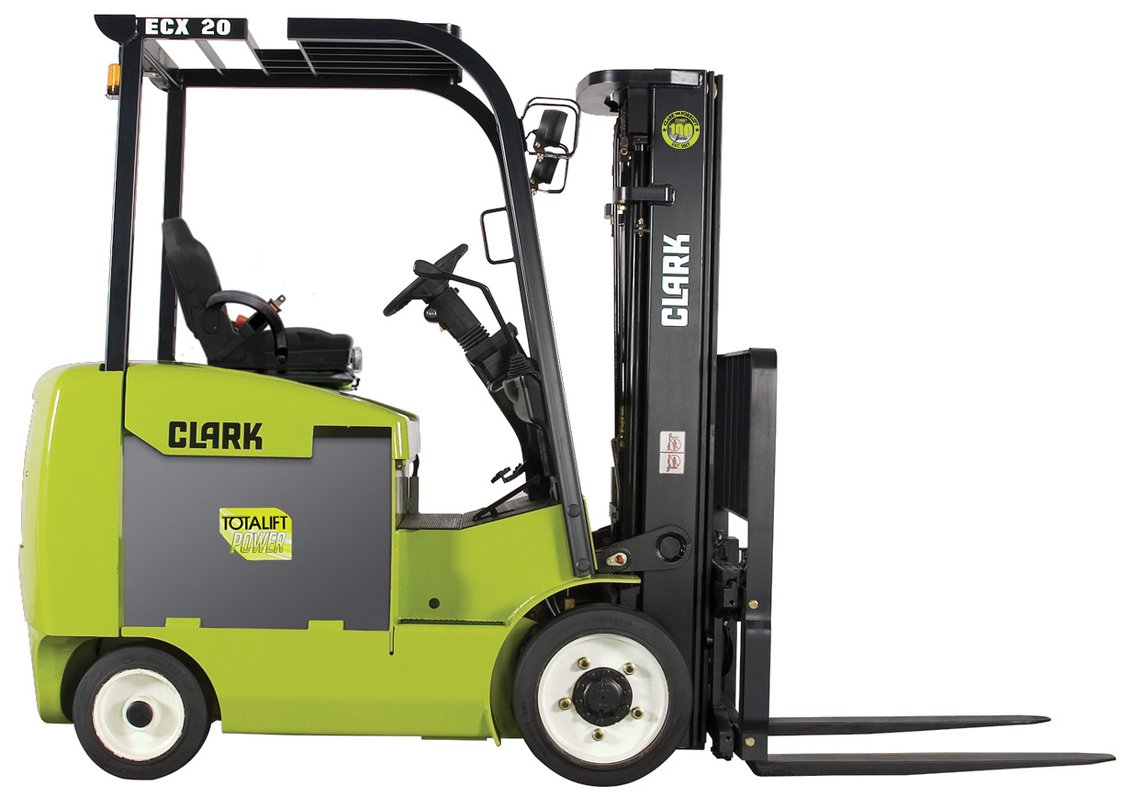

CLARK ECX20 Electric Rider Forklift
The CLARK ECX20 is a 4,000 lbs (2,000 kg) electric forklift. The CLARK ECX series of electric lift trucks are the ideal choice for demanding manufacturing and distribution applications. Superior ergonomic design, operator comfort, safety and outstanding truck performance are backed by the oldest name in lift trucks.
Reach out to your local Westerra Equipment to learn more and demo one today.
Specifications
| Brakes | Drum/Shoe |
| Power Mode | Electric |
| Standard Mast: Free Lift | 61.5 in |
| Mast | 3-Stage |
| Maximum Fork Height | 189.0 in |
| Cable Connection Position | A |
| Cable Length | 18.0 ft |
| Control Type | AC Control |
| Drive Motor | Dual AC |
| Plug Type | SB-350 Gray |
| Minimum Battery Weight | 2600.0 lbs |
| Steering | Hydrostatic |
| Center of Wheelbase | 4.5 in |
| Maximum Fork Spread | 35.0 in |
| Min. Aisle Right Ang Stack +LL | 86.8 in |
| Tread (Front/Rear) | 34.8/34.2 |
| Wheelbase | 53.0 in |
| Height To Top Overhead Guard | 88.0 in |
| Lowered Overall Height | 83.0 in |
| Overall Length | 82.8 in |
| Overall Width | 41.9 in |
| Front Overhang | 16.7 in |
| Steer Tire Size | 16 x 6 x 10.5 |
| Drive Tire Size | 21 x 7 x 15 in |
| Lift Capacity | 4000.0 lbs |
| Load Center | 24.0 in |
| Max Fork Height Rated Capacity | 189.0 in |
| Travel Speed Loaded | 8.8 |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
