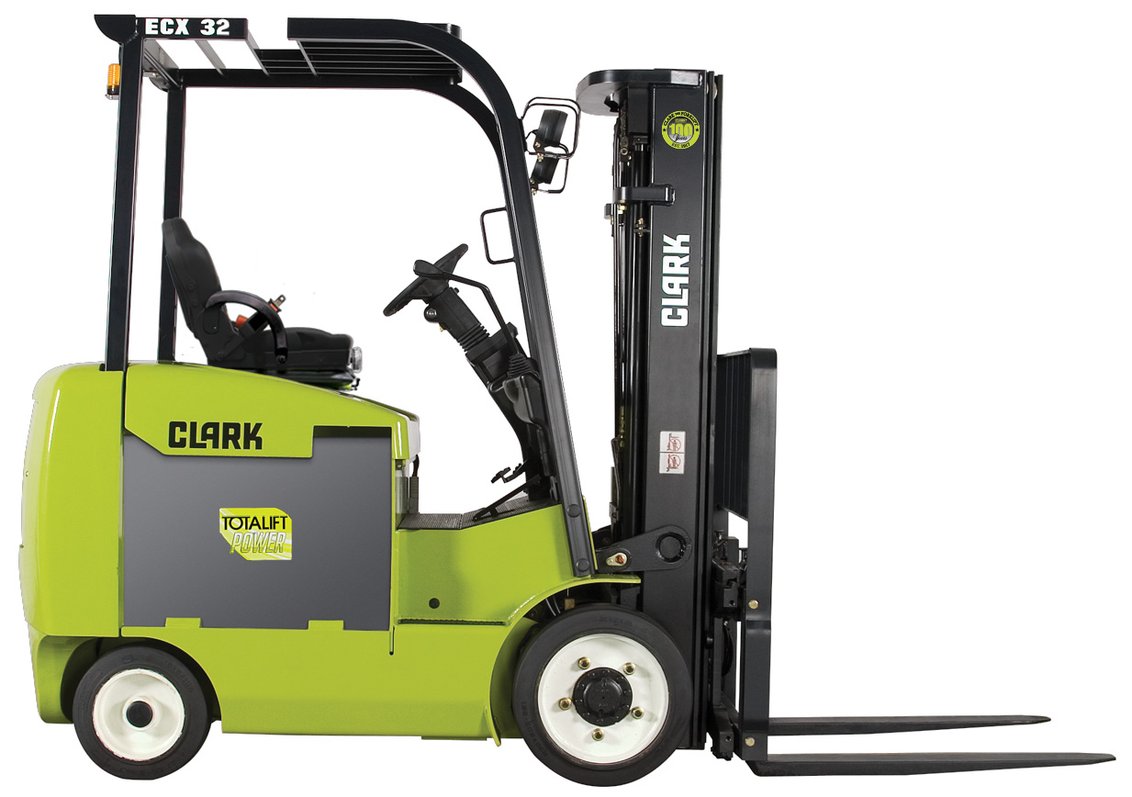

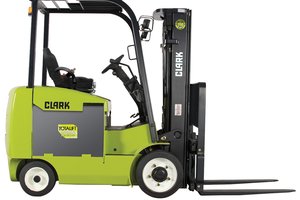

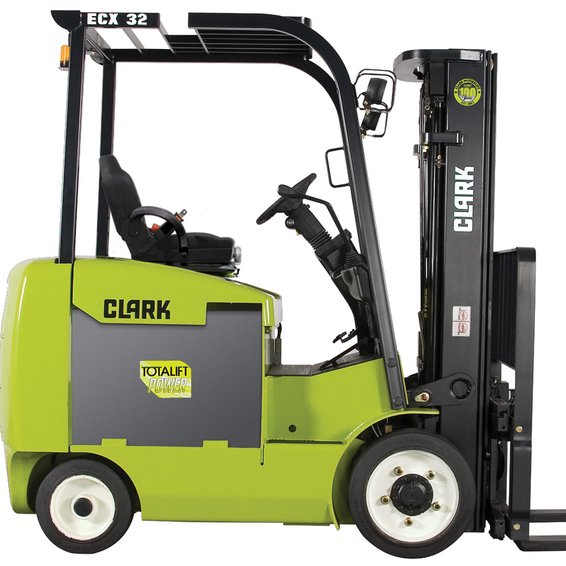

CLARK ECX32 Electric Rider Forklift
The CLARK ECX32 6,500 lbs (3,000 kg) electric forklift is a part of the ECX series of electric lift trucks. The ECX lift trucks are an ideal choice for demanding manufacturing and distribution applications. Superior ergonomic design, operator comfort, safety and outstanding truck performance are backed by the oldest name in lift trucks.
Demo one today by reaching out to your local Westerra Equipment dealership!
Specifications
| Brakes | Drum/Shoe |
| Power Mode | Electric |
| Standard Mast: Free Lift | 59.0 in |
| Mast | 3-Stage |
| Maximum Fork Height | 189.0 in |
| Cable Connection Position | A |
| Cable Length | 18.0 ft |
| Control Type | AC Control |
| Drive Motor | Dual AC |
| Plug Type | SB-350 Gray |
| Minimum Battery Weight | 3100.0 lbs |
| Steering | Hydrostaic |
| Center of Wheelbase | 4.5 in |
| Maximum Fork Spread | 39.0 in |
| Min. Aisle Right Ang Stack +LL | 96.2 in |
| Tread (Front/Rear) | 36.5/34.2 |
| Wheelbase | 57.0 in |
| Height To Top Overhead Guard | 88.0 in |
| Lowered Overall Height | 85.0 in |
| Overall Length | 92.2 in |
| Overall Width | 45.4 in |
| Front Overhang | 17.5 in |
| Steer Tire Size | 16 x 6 x 10.5 |
| Drive Tire Size | 21 x 9 x 15 in |
| Lift Capacity | 6500.0 lbs |
| Load Center | 24.0 in |
| Max Fork Height Rated Capacity | 164.0 in |
| Travel Speed Loaded | 7.5 |
