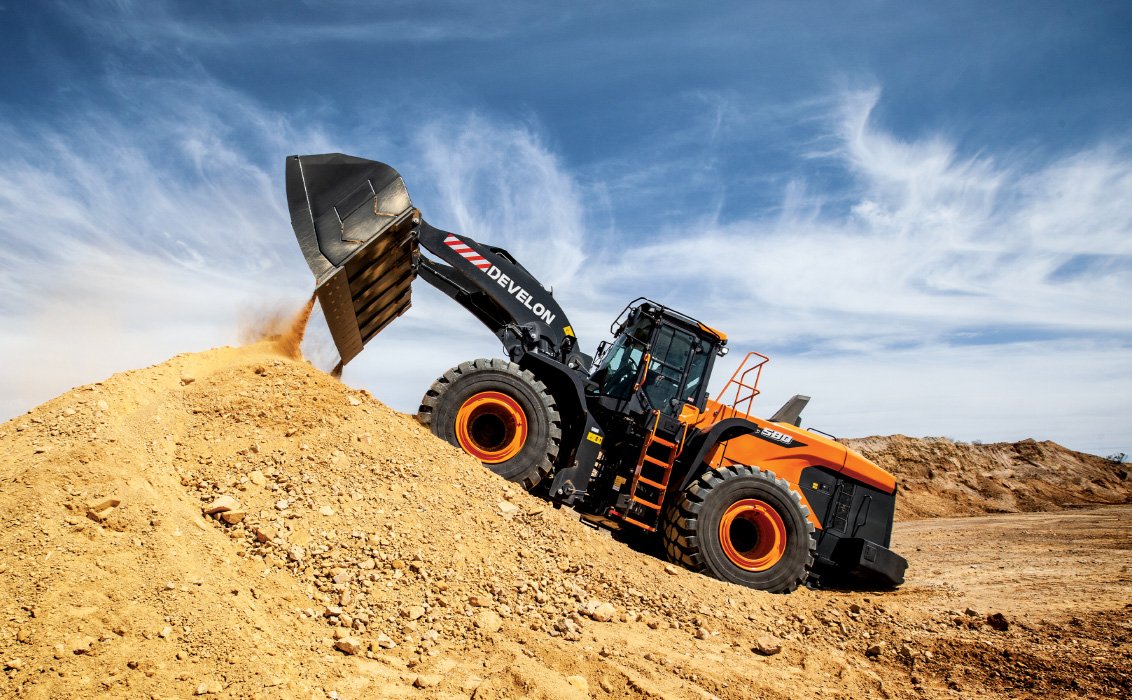

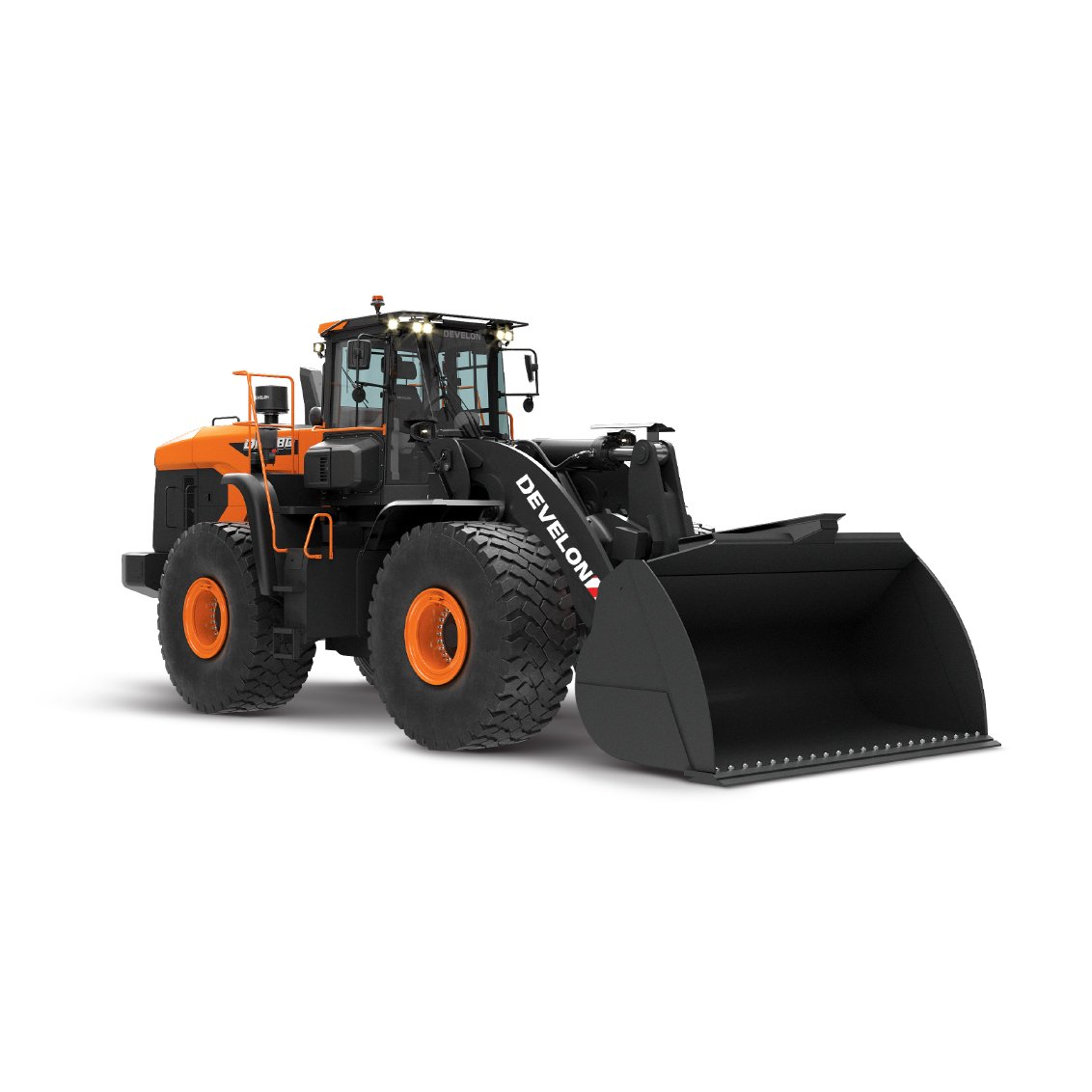

DEVELON DL580-7 Wheel Loader

New Equipment

Built for the heavy-duty work, the Develon DL580-7 wheel loader can help you tackle the toughest jobs in mining, construction, and industrial operations. Designed to handle enormous loads, this machine can efficiently fill a 24-ton capacity, over-the-road truck in just two passes. Equipped with a stronger axle and frame, the DL580-7 offers better balance and a higher bucket capacity as compared to the previous 5-series wheel loaders.

This model comes with an Automatic Lubrication System as a standard feature which improves machine reliability and saves you daily maintenance time. The DL580-7 offers a variety of features, including Situation Awareness Technology (SAT) 2.0, and a Smart Guidance System that helps you use the machine efficiently.

The DL580-7 also offers more comfort to the operator with an upgraded heating and air conditioning system, roomier cab, and more intuitive controls. You can count on DL580-7 to cut the big jobs down to size in the most challenging conditions.

Request a Quote

Specifications

Bucket Capacity	8.4 cu yd

Operating Weight	74494.0 lbs

Horsepower	394.0 hp
Engine Manufacturer	Scania
Engine Model	DC13

Operator Protection	ROPS/FOPS

Tread Width	95.3 in

Overall Width Without Bucket	134.1 in
Height to Top of Cab	151.4 in
Height to Hinge Pin	188.2 in
Overall Width	134.8 in
Width Over Tires	134.1 in
Overall Length W/Bucket	395.7 in
Overall Height	188.2 in
Overall Length	395.7 in
Dump Height	125.2 in
Dump Reach @ Full Height	64.7 in
Maximum Operating Height	188.2 in
Maximum Operating Weight	74494.0 lbs
