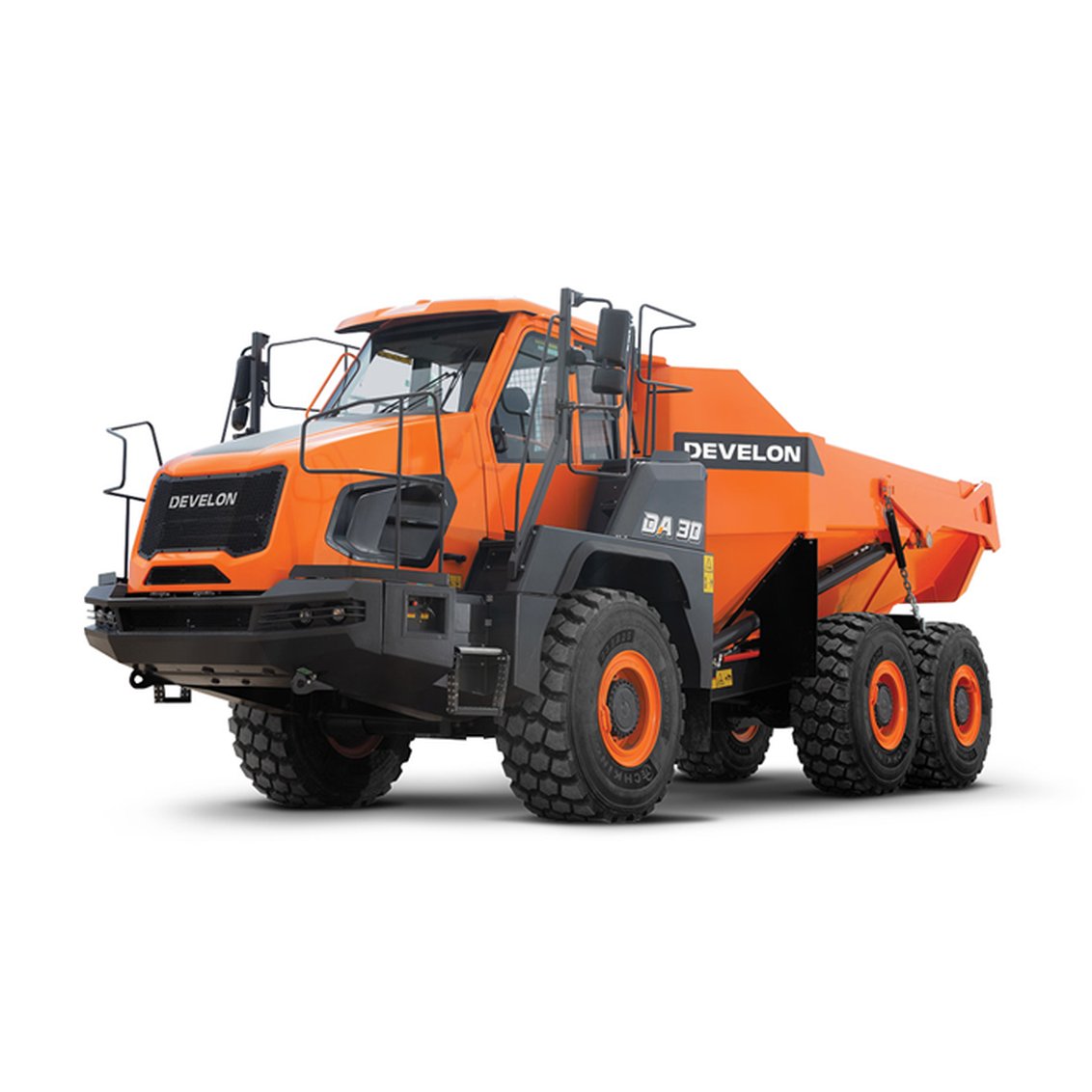

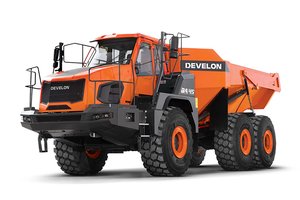

DEVELON DA30-5 Articulated Dump Truck
The Develon DA30-5 articulated dump truck moves materials faster, works harder in tough conditions and navigates roadways and difficult terrain with ease. The DA30-5 includes a hydro-gas, self-leveling front suspension system for superior performance and greater shock absorption. The new system provides a smoother ride and increased operator comfort, especially when operating an empty truck. The system is self-leveling and gives you the option to change characteristics by adjusting the pressure.
The unique Develon truck design with a front-mounted turning ring, sloping rear frame and free-swinging rear tandem bogie provides better weight distribution and ensures permanent six-wheel contact with the ground. The limited slip differential provides the highest torque to the wheel, with the best grip for extreme performance in off-road conditions.
When it’s time to head out to another job, this truck’s less-than-10-foot width means it can be transported easily from site to site.
Specifications
Axle Configuration | 6 x 6 |
Gross Weight | 113318.0 lbs |
Overall Height | 140.6 in |
Overall Length | 376.3 in |
Body Capacity | 23.3 cu yd |
Horsepower | 362.0 hp |
Engine Manufacturer | Scania |
Engine Model | DC9 |
Power Mode | Diesel |
Number Of Speeds F/R | 8F/4R |
Transmission | Automatic |
Rear Axle Weight (Gvw) | 76721.0 lbs |
Front Axle Weight (Gvw) | 36597.0 lbs |
Net Weight | 51588.0 lbs |
Overall Width | 117.7 in |
Rated Payload | 28.0 mt |
Inventory
DEVELON DA30-5 Articulated Dump Truck | 2 |
