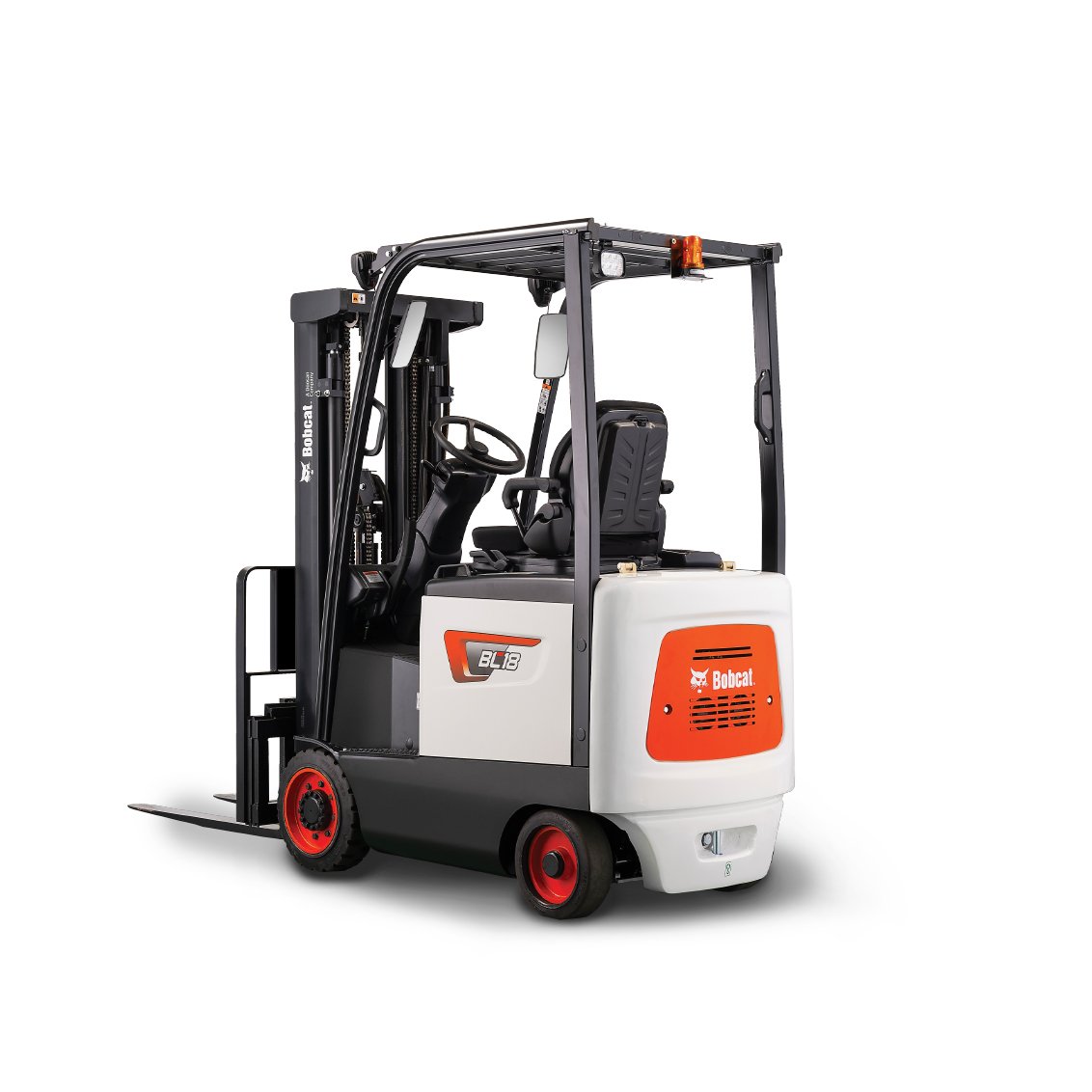

Bobcat BC18S-5 Electric Rider Forklift
Assessing the value of a lift truck ultimately boils down to productivity, and this is precisely where the Pro5 Series shines. The productivity of an electric truck hinges on a blend of speed, control, and energy efficiency—factors that the Pro5 Series excels in due to a range of distinctive Bobcat design innovations.
Specifications
| Brakes | Oil Disc |
| Power Mode | Electric |
| Standard Mast: Free Lift | 63.0 in |
| Mast | 3-Stage |
| Maximum Fork Height | 187.0 in |
| Control Type | Microprocessor |
| Drive Motor | DC |
| Plug Type | SB-350 Gray |
| Voltage | 36.0 V |
| Minimum Battery Weight | 1852.0 lbs |
| Steering | Hydrostatic |
| Center of Wheelbase | 3.7 in |
| Maximum Fork Spread | 35.6 in |
| Min. Aisle Right Ang Stack +LL | 82.0 in |
| Tread (Front/Rear) | 31/31 |
| Wheelbase | 48.0 in |
| Height To Top Overhead Guard | 85.2 in |
| Lowered Overall Height | 83.0 in |
| Overall Length | 76.2 in |
| Overall Width | 37.2 in |
| Front Overhang | 15.5 in |
| Steer Tire Size | 14 x 5 x 10 |
| Drive Tire Size | 18 x 6 x 12-1/8 in |
| Lift Capacity | 3500.0 lbs |
| Load Center | 24.0 in |
| Max Fork Height Rated Capacity | 145.7 in |
| Travel Speed Loaded | 7.9 |
