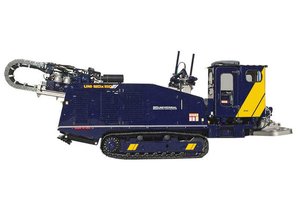

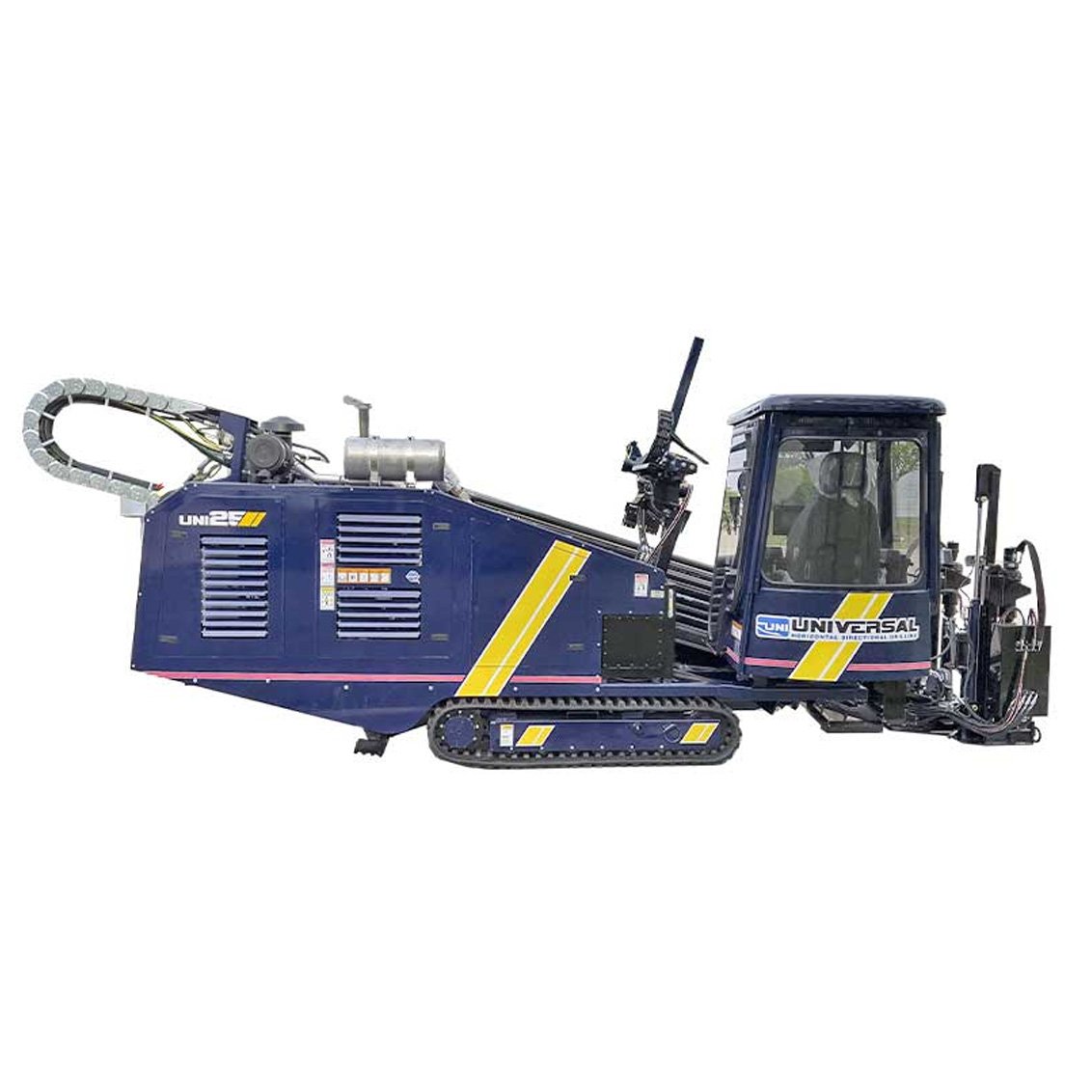

Universal HDD UNI 25 Directional Drill
The UNI 25 directional drill is a versatile and efficient horizontal drilling machine designed for precision and durability in a wide range of applications. Engineered to handle challenging ground conditions, the UNI 25 features advanced steering capabilities, high torque, and robust thrust and pullback forces, making it ideal for utility installations, pipeline projects, and telecommunications.
Its compact design ensures easy maneuverability in tight urban spaces, while its state-of-the-art control system allows for precise adjustments and real-time monitoring of drilling parameters.
Equipped with a powerful engine and optimized fluid management system, the UNI 25 enhances productivity while minimizing environmental impact, solidifying its reputation as a reliable choice for directional drilling professionals.
Specifications
Drill Pipe Length | 10.0 ft |
Drill Fluid Pressure | 1000.0 psi |
Drill Fluid Flow | 72.9 gal/min |
Power Mode | Diesel |
Horsepower | 132.0 hp |
Emissions Tier | Tier 4 Final |
Overall Height | 97.7 in |
Overall Length | 221.7 in |
Operating Weight | 12000.0 lbs |
Overall Width | 73.3 in |
Maximum Thrust | 25000.0 lbs |
Spindle Torque | 4000.0 ft-lb |
Maximum Pullback | 25000.0 lbs |
Maximum Spindle Speed | 90.0 rpm |
