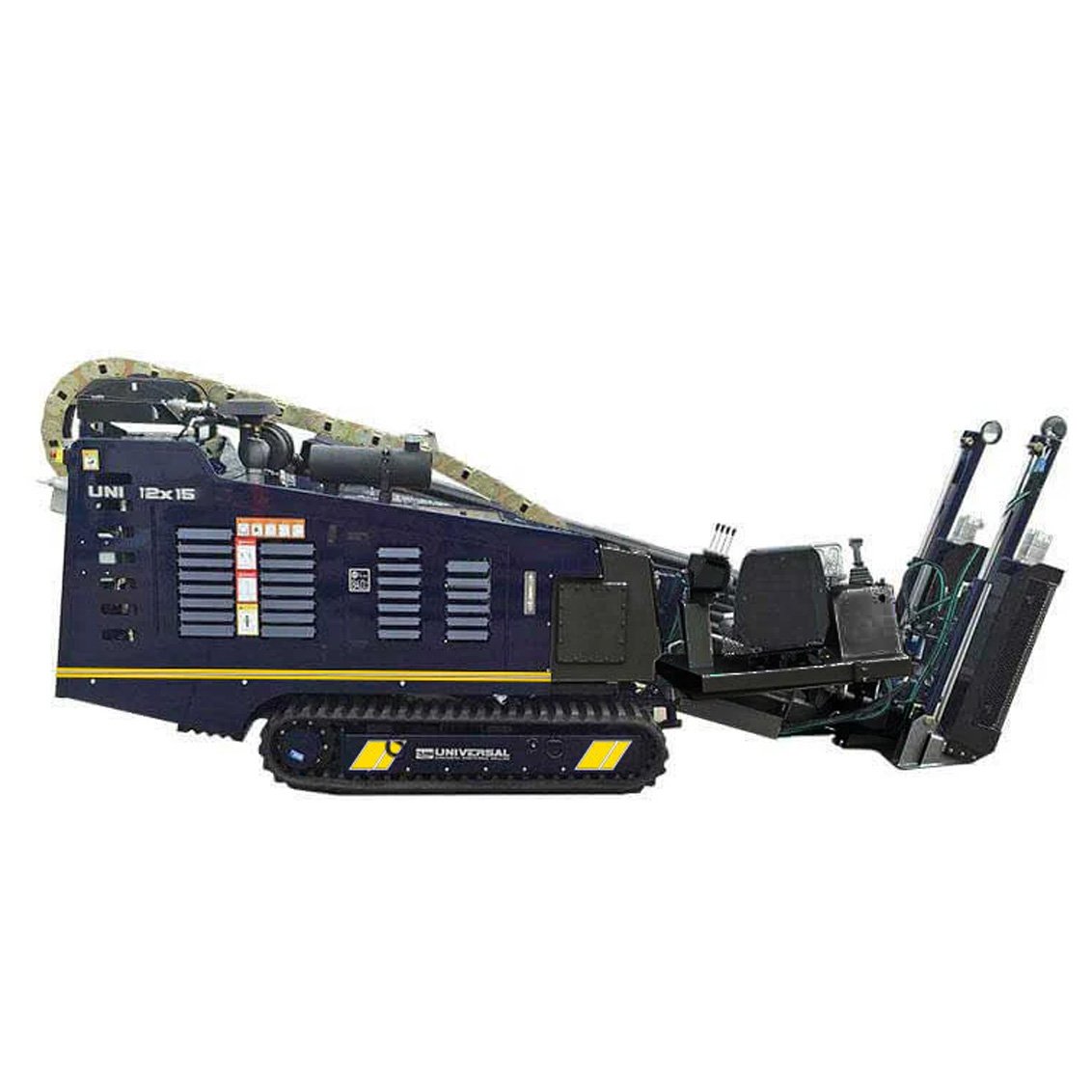

Universal HDD UNI 12x15 Directional Drill
The UNI 12x15 directional drill is a versatile and compact piece of machinery designed for horizontal directional drilling (HDD) applications. Known for its reliability and performance, this drill offers a robust combination of torque and pullback force, making it ideal for medium-sized projects such as installing utility conduits, fiber-optic cables, and pipelines.
Its user-friendly controls and precision-engineered components ensure accuracy and efficiency, even in challenging ground conditions. The UNI 12x15 is also equipped with advanced safety features and an ergonomic operator station, prioritizing both productivity and operator comfort.
Its compact footprint and ease of transport make it a popular choice for contractors working in urban and residential areas.
Specifications
Drill Pipe Length | 6.0 ft |
Drill Fluid Pressure | 1172.0 psi |
Drill Fluid Flow | 28.0 gal/min |
Engine Torque @RPM | 2500.0 ft-lb |
Power Mode | Diesel |
Horsepower | 74.0 hp |
Emissions Tier | Tier 4 Final |
Overall Height | 74.6 in |
Overall Length | 185.0 in |
Operating Weight | 9200.0 lbs |
Overall Width | 60.2 in |
Maximum Thrust | 12000.0 lbs |
Spindle Torque | 1500.0 ft-lb |
Maximum Pullback | 12000.0 lbs |
