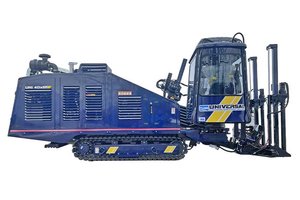

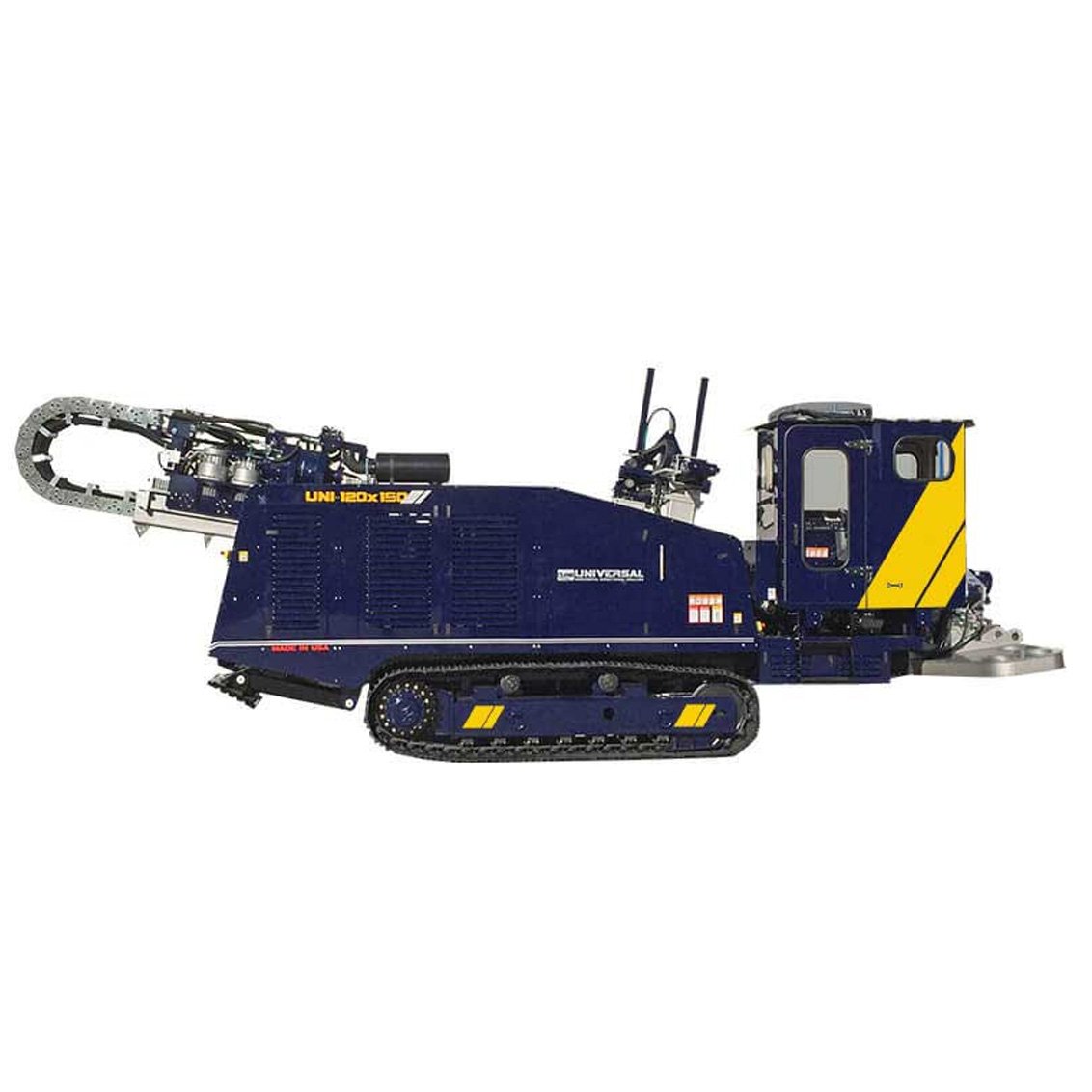

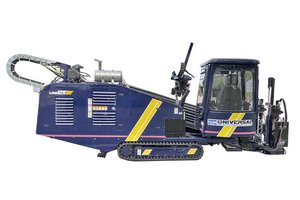

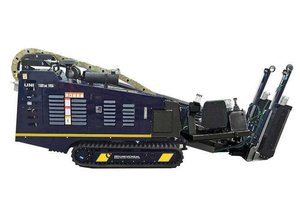

Universal HDD UNI 120x150 Directional Drill
The UNI 120x150 directional drill is a versatile and robust piece of equipment designed for precision and efficiency in horizontal directional drilling (HDD) projects. Engineered to handle challenging drilling conditions, it boasts a thrust and pullback capacity of 120,000 pounds and a rotational torque of 15,000 ft-lbs, making it ideal for installing pipelines, cables, and conduits under roads, rivers, and other obstacles.
Equipped with advanced features like automated rod loading, real-time monitoring systems, and intuitive controls, the UNI 120x150 ensures optimal performance and safety on the job site. Its compact design and environmentally conscious operations, including reduced emissions and minimal surface disruption, make it a preferred choice for urban and environmentally sensitive drilling projects.
Specifications
Drill Pipe Length | 15.0 ft |
Drill Fluid Pressure | 1136.0 psi |
Drill Fluid Flow | 315.0 gal/min |
Power Mode | Diesel |
Horsepower | 349.0 hp |
Emissions Tier | Tier 4 Final |
Overall Height | 118.0 in |
Overall Length | 420.0 in |
Operating Weight | 48500.0 lbs |
Overall Width | 125.0 in |
Maximum Thrust | 120000.0 lbs |
Spindle Torque | 15000.0 ft-lb |
Maximum Pullback | 120000.0 lbs |
